Note: Replacing HDMI requires experience and the right equipment!

● Issue Description

1. Mechanical damage
2. Video/Audio signal depends on cable movement
3. No Video/Audio output

● Diagnostics

1. Check for visible mechanical damage.
2. Verify the console light – solid white = good.
3. Connect a gamepad to confirm console response.
4. Perform a diode test as shown below. Values may vary slightly, but the key is the location of the green, red, and white pins.

HDMI diode test: PS5 FAT

GND

1

OL

2

0.07

3

0.84

4

0.84

5

0.07

6

0.84

7

0.84

8

0.07

9

0.84

10

0.84

11

GND

12

13

GND

14

0.07

15

0.84

16

0.70

17

OL

18

0.69

19

0.69

20

0.07

21

0.56

22

0.70

23

OL

24

GND

HDMI diode test: PS5 PRO

GND

1

0.85

2

0.07

3

0.85

4

0.85

5

0.07

6

0.85

7

0.85

8

0.07

9

0.85

10

0.85

11

GND

12

13

GND

14

0.07

15

0.85

16

0.71

17

OL

18

0.70

19

0.70

20

0.07

21

0.64

22

0.70

23

OL

24

GND

● Repair Steps

1. The PS5 motherboard is robust. Use hot air at 420°C, airflow 2–3, with preheating at 160°C.
2. Apply flux and fresh solder.
3. Heat the area – using a soldering iron can help.
4. Be careful with the small components located behind the HDMI port – they can be easily displaced or damaged.
5. Clean the pads thoroughly.
6. Install the new HDMI port.

● Testing

1. Perform a diode test again.
2. Check video and audio output with a display.

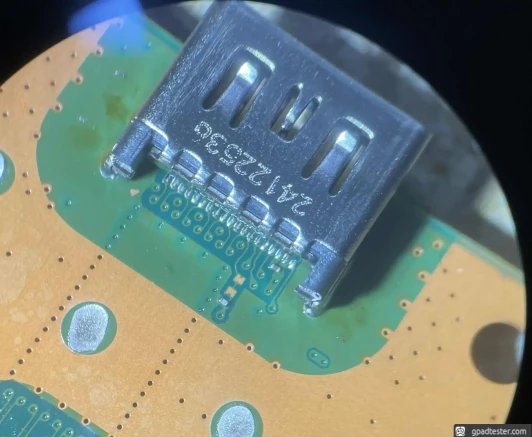

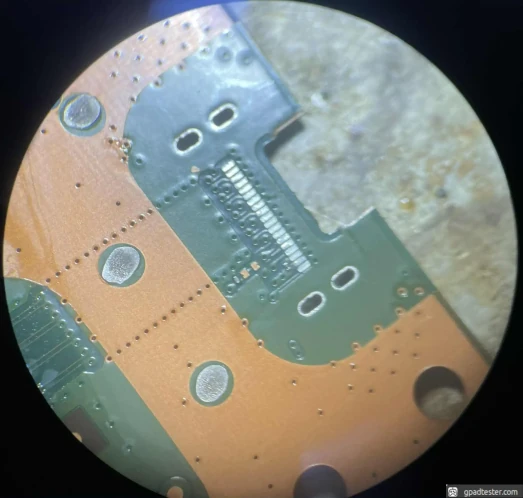

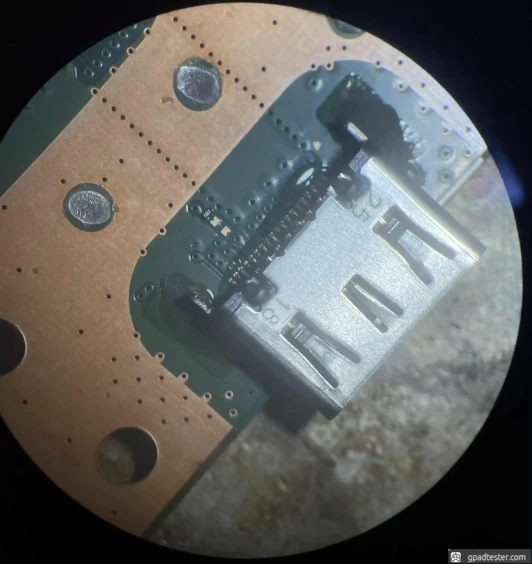

● Gallery
